The cross over expansion joint located in the piping between the steam turbine and condenser hood is often not understood well and often ignored.

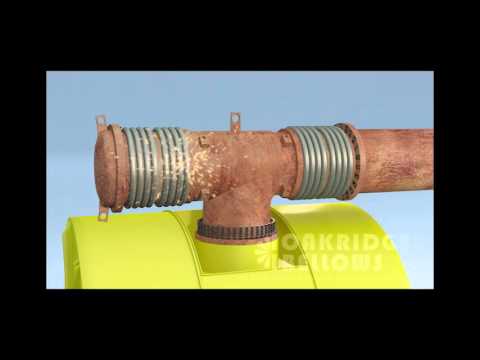

This animated video gives a rare glimpse into how this expansion joint protects the steam turbine.

To avoid long unscheduled outages, Steam turbine manufacturers recommend having these rebuilt after 25 years in operation.

This is a video that is of interest to maintenance, steam and turbine engineers, and inspectors.
